Product parameters
| LOVOL |
/ |
Q1304 |
| Engine |
Horsepower |
HP |
130 |
| Displacement |
L |
6.5 |
| Torque |
N M |
≥580 |
| Transmission |
Gearshift |
/ |
16+8 |
| Technical route |
/ |
Synchronizer shift |
| Speed range |
km/h |
1.65-35.44 |
| PTO speed |
r/min |
540/1000 |
| Hydraulic |
Lifting power |
kN |
23 |
| Three-point suspension type |
/ |
Category 2 |
| Hydraulic output flow |
L/min |
63 |
| Number of multi-way valves |
/ |
3 |
| Parameter |
length*width*height |
mm |
5060*2285*3100 |
| Wheelbase |
mm |
2700 |
| Ground clearance |
mm |
470 |
| Turning radius |
m |
4.7±0.3 |
| Minimum use quality |
kg |
5500 |
| Tire size |
/ |
14.9-26/18.4-38 |
Introduction

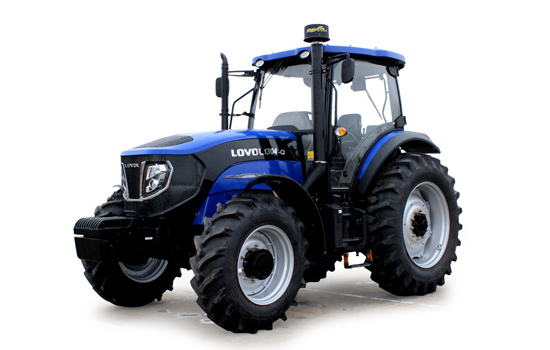

Lovol Q1304 tractor adopts 16+8 synchronizer to shift gears. It is an agricultural model developed by Lovol European technology team, which is suitable for families, small, medium, and large farms. Q Series tractors have the characteristics of comfortable driving, high efficiency, economical and energy-saving, reliable performance, etc. bringing you a new experience of high efficiency, multi-function, lasting power, and comfortable operation.
Overview
It is generally suitable for dry field operations such as plowing, raking, subsoiling, combined soil preparation, transportation, and sowing.
Product advantages
LOVOL TQ1304 tractor, designed and manufactured by the European technology team, is a product for dry fields and multi-functional applications
Using the engine satisfies the EuroⅡemission standards, torque reserve coefficient ≥ 30%, traction force up to 29.5 KN; Synchronizer 16F+8R gear, easy to shift; Body appearance upgrade, high handling comfort
Using LUK clutch, the United States Actuant instrument, strengthen front axle and chassis; Key parts and components are purchased from all over the world. The average Meaning time between faults is 220 hours, High product reliability
Standard with three groups hydraulic output,; Using Category II suspension; Double cylinders high-pressure lifter, maximum lifting force up to 23KN; Optional 6 /8 /21 splines switch PTO output spline shaft, PTO rotation speed 540/720/850/1000 optional, suspension and swing traction optional, can be equipped with a variety of agricultural implements, to meet the needs of different operations
OECD authentication ROPS
