Weichai Group

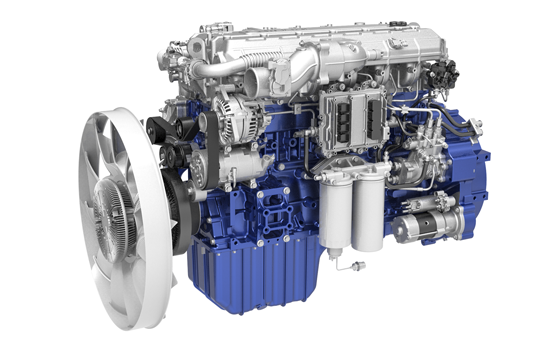

WP7 series truck engine

Product portfolio

Mode Displacement
（L） Number of valves per cylinder Rated power/speed
(kW/rpm) Maximum torque/speed
(N·m/rpm) Min. fuel consumption on external characteristic curve
(g/kW·h) Technical route Application

WP7.270E51 7.47 4 199/2100 1160/1200-1600 ≤205 CR+SCR Cargo trucks
dump trucks
mixer trucks
truck-mounted cranes

WP7.300E51 7.47 4 220/2100 1250/1200-1600 ≤205 CR+SCR Cargo trucks
dump trucks
mixer trucks
truck-mounted cranes

Product advantages

Emission: Euro V.

Power performance: High power, high torque (and high output torque at low speed).

Economy: The optimized powertrain system ensures low fuel consumption; the engine is able to achieve high mechanical efficiency at low speed, ensuring low fuel consumption.

Comfort: The customized development of NVH ensures low noise and vibration.

Reliable

B10 life is greater than 1,000,000 km.

Better economy

The speed that can achieve minimum fuel consumption covers the whole working speed range.

The intake and exhaust manifolds are arranged on different sides, improving charge efficiency, optimizing combustion, and improving economy.

Comfortable

The integrated rotor-type oil pump and standard shear gear reduce the transmission noise further.

The engine noise is reduced to 79 dB(A) @ idle ，93 dB(A) @ rated power.

Mode	Displacement （L）	Number of valves per cylinder	Rated power/speed (kW/rpm)	Maximum torque/speed (N·m/rpm)	Min. fuel consumption on external characteristic curve (g/kW·h)	Technical route	Application
WP7.270E51	7.47	4	199/2100	1160/1200-1600	≤205	CR+SCR	Cargo trucks dump trucks mixer trucks truck-mounted cranes
WP7.300E51	7.47	4	220/2100	1250/1200-1600	≤205	CR+SCR	Cargo trucks dump trucks mixer trucks truck-mounted cranes
