Weichai Group

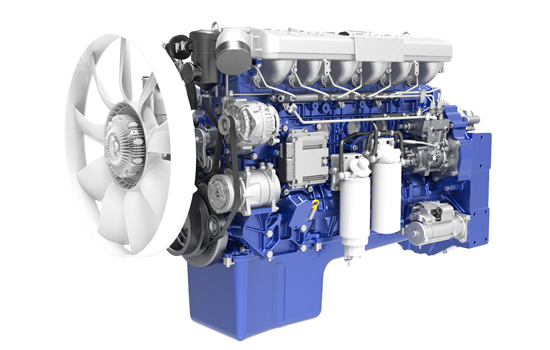

WP12 series truck engine

Product portfolio

Mode Displacement
（L） Number of valves per cylinder Rated power/speed (kW/rpm) Maximum torque/speed (N·m/rpm) Min. fuel consumption on external characteristic curve (g/kW·h) Technical route Application

WP12.400E50 11.596 4 294/1900 1920/1000-1400 ≤191 CR + SCR tractors
cargo trucks
dump trucks

WP12.430E50 11.596 4 316/1900 2060/1000-1400 ≤193 CR + SCR tractors
cargo trucks
dump trucks

WP12.460E50 11.596 4 338/1900 2110/1000-1400 ≤194 CR + SCR tractors
cargo trucks
dump trucks

Product advantages

The WEICHAI Landking engine features compact structure and meets the Euro V and Euro VI emission requirements.

Comfort: The customized development of NVH ensures low noise and vibration.

Reliable

The standard WCBS has a braking power up to 263 kW.

B10 life is greater than 1,000,000 km.

Better economy

The speed that can achieve minimum fuel consumption covers the whole working speed range.

The WEICHAI ECU control system improves driver’s shift schedule and thus reduces fuel consumption.

The engine speed matching point for the same vehicle speed is lowered by 200 r/min, reducing frictional work and fuel consumption.

High configuration

The lightweight and modular design of the engine significantly reduces the weight of the engine and reduces the number of peripheral parts.

Mode	Displacement （L）	Number of valves per cylinder	Rated power/speed (kW/rpm)	Maximum torque/speed (N·m/rpm)	Min. fuel consumption on external characteristic curve (g/kW·h)	Technical route	Application
WP12.400E50	11.596	4	294/1900	1920/1000-1400	≤191	CR + SCR	tractors cargo trucks dump trucks
WP12.430E50	11.596	4	316/1900	2060/1000-1400	≤193	CR + SCR	tractors cargo trucks dump trucks
WP12.460E50	11.596	4	338/1900	2110/1000-1400	≤194	CR + SCR	tractors cargo trucks dump trucks
