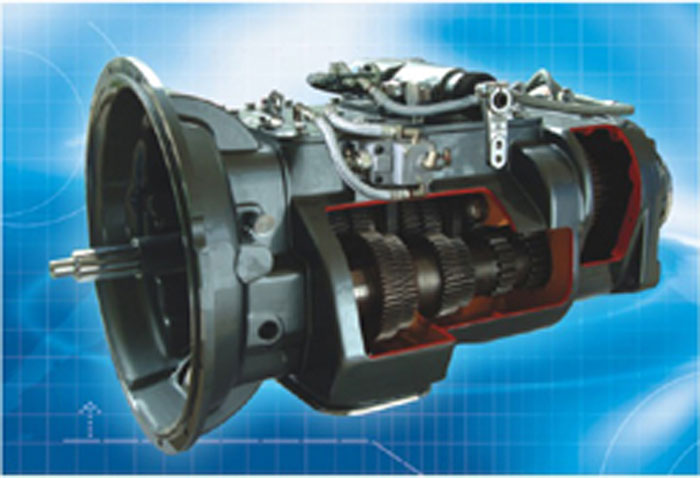

16JS180T/16JS200T/16JS240T Serial Fully Synchronized Transmissions
Structure Characteristics:
Combined design of main case and front, rear auxiliary cases, small volume ， light weight and high efficiency in power transfer .
Twin countershafts, power well distributed and unique structure.
Fully synchronized, easy shifting, the main case is equipped with double-taper faced lock-ring synchronizer, large synchro-capacity.
Front auxiliary case is equipped with single taper faced lock-ring synchronizer; rear auxiliary case is equipped with enhanced taper faced lock-pin synchronizer.
Rational arrangement for speeds, small ratio steps and good fuel efficiency.
Non-metallic friction material is adopted on friction taper surfaces, high reliability.
Thin-and-fine teeth design, stable engagement and low noise.
There are many types of power taking off.
Technical Parameter：
| Models | Power
(Kw0 | Torque
(Nm) | Gear Ratios | Weight
(Kg) | Oil
(L) |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | R1 | R2 |
| 16JS180T | 331 | 1800 | 17.04 | 14.03 | 11.66 | 9.60 | 8.06 | 6.64 | 5.53 | 4.55 | 3.74 | 3.08 | 2.56 | 2.11 | 1.77 | 1.46 | 1.21 | 1.00 | 16.30 | 13.42 | 342 | 15 |
| 16JS180TA | 331 | 1800 | 14.03 | 11.64 | 9.60 | 7.97 | 6.64 | 5.49 | 4.55 | 3.78 | 3.08 | 2.56 | 2.11 | 1.75 | 1.46 | 1.21 | 1.00 | 0.83 | 13.42 | 11.13 | 342 | 15 |
| 16JS200T | 355 | 2000 | 17.04 | 14.03 | 11.66 | 9.60 | 8.06 | 6.64 | 5.53 | 4.55 | 3.74 | 3.08 | 2.56 | 2.11 | 1.77 | 1.46 | 1.21 | 1.00 | 16.30 | 13.42 | 342 | 15 |
| 16JS200TA | 355 | 2000 | 14.03 | 11.64 | 9.60 | 7.97 | 6.64 | 5.49 | 4.55 | 3.78 | 3.08 | 2.56 | 2.11 | 1.75 | 1.46 | 1.21 | 1.00 | 0.83 | 13.42 | 11.13 | 342 | 15 |
| 16JS240T | 400 | 2400 | 17.04 | 14.03 | 11.66 | 9.60 | 8.06 | 6.64 | 5.53 | 4.55 | 3.74 | 3.08 | 2.56 | 2.11 | 1.77 | 1.46 | 1.21 | 1.00 | 16.30 | 13.42 | 342 | 15 |
| 16JS240TA | 400 | 2400 | 14.03 | 11.64 | 9.60 | 7.97 | 6.64 | 5.49 | 4.55 | 3.78 | 3.08 | 2.56 | 2.11 | 1.75 | 1.46 | 1.21 | 1.00 | 0.83 | 13.42 | 11.13 | 342 | 15 |
Applicable Vehicles:
This series of transmissions can be applied to large buses, deluxe big passenger cars, etc.
