Weichai Group

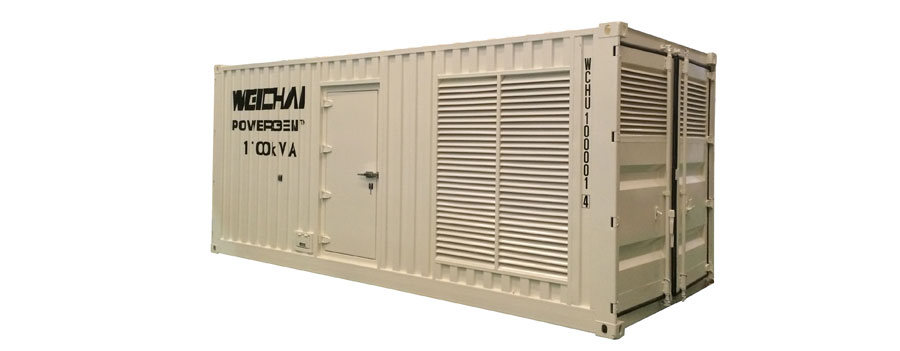

M series land based diesel generators-Closed type

Widely used in telecommunications, oil, public buildings, community, industrial and mining enterprises, hotels, hospitals and other fields.

Has a good technical performance indicators;

Compact, high power per liter;

Large power reserve;

Fully meet the GB / T 2820 GB and GJB 5785 and YD 502 industry standards;

Full protection of high temperature and rotating parts;

High-performance shock absorbers and 40 ℃ hot tank;

Spray Public chassis;

Rated power: 360-2000kW

Rated voltage: 400V;

The rated speed / rated frequency: 1500rpm/50Hz;

Rated power factor: 0.8 (lagging);

number of cylinders / Bore / Stroke: 6/150*150mm --12V/180*215mm

Displacement: 15.9L—65.65L;

Cooling: Closed radiator fan forced cooling;

The start-up mode: DC24V electric motor;

Number of phases and connection: three-phase four-wire, star connection;

Excitation / regulator: Brushless / AVR automatically;

Diesel fuel consumption economy: ≤ 197g/kW · h;

Oil consumption: ≤ 1.0g/kW · h;
