Weichai Group

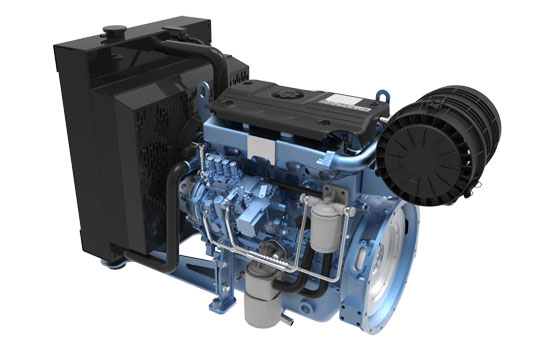

4M06 Power Kit

Product portfolio

Model	Displacement （L）	Type	Prime power/speed (kWm/rpm)	Standby power/speed (kWm/rpm)	Recommended prime power of Generator (kWe)	Recommended standby power of Generator (kWe)	Technical route
4M06G20/5 （4M06GT20/5）	2.3	Inline 4-cylinder	18/1500	20/1500	15	16	Elec.,NA
4M06G25/5 （4M06GT25/5)	2.3	Inline 4-cylinder	23/1500	25/1500	18	20	Elec.,NA
4M06G35/5 (4M06GT35/5)	2.3	Inline 4-cylinder	30/1500	33/1500	26	28	Elec., T
4M06G44/5	2.3	Inline 4-cylinder	37/1500	41/1500	32	35	Elec., T
4M06G50/5	2.3	Inline 4-cylinder	44/1500	48/1500	36	40	Elec., T/A-A
4M06G55/5	2.3	Inline 4-cylinder	48/1500	53/1500	40	44	ECU, T/A-A
4M06G20/6	2.3	Inline 4-cylinder	23/1800	25/1800	18	20	Elec., NA
4M06G25/6	2.3	Inline 4-cylinder	27/1800	30/1800	23	25	Elec., NA
4M06G33/6	2.3	Inline 4-cylinder	37/1800	41/1800	30	33	Elec., T
4M06G41/6	2.3	Inline 4-cylinder	43/1800	47/1800	37	41	Elec., T
4M06G50/6	2.3	Inline 4-cylinder	53/1800	58/1800	45	50	Elec., T/A-A
4M06G55/6	2.3	Inline 4-cylinder	58/1800	63/1800	50	55	ECU,T/A-A

Product advantage

Special structure

Small size and light weight.
The intake/exhaust structure is optimized, reducing flow resistance and the height of the engine.
The special flat-bottomed oil sump is used, which reduces the height of the engine, as well as vibration and noise.
The rear-mounted air filter is used, which reduces the width of the engine and ensures easy maintenance.
Economy
Fuel consumption for the load rate between 60% and 90% is optimized specially, such that low fuel consumption is guaranteed.
Oil drain interval can reach 500 hours.
High level of platform
The engine is modular in design with high level of platform, the maintenance parts of the whole series are universal.
