Weichai Group

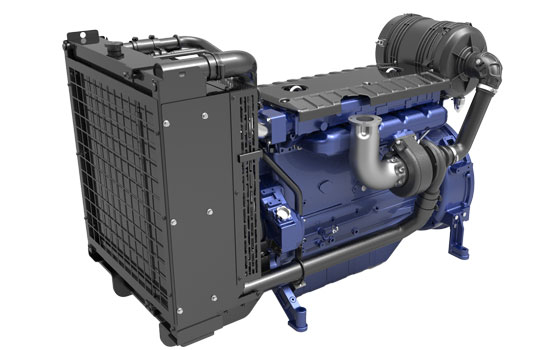

6M11 power-kit

Product portfolio

Model	Displacement （L）	Type	Prime power/speed (kWm/rpm)	Standby power/speed (kWm/rpm)	Recommended prime power of Generator (kWe)	Recommended standby power of Generator (kWe)	Technical route
6M11G150/5	6.75	Inline 6-cylinder	128/1500	140/1500	108	120	Elec., T/A-A
6M11G165/5	6.75	Inline 6-cylinder	138/1500	152/1500	120	132	Elec., T/A-A
6M11G110/6	6.75	Inline 6-cylinder	120/1800	132/1800	100	110	Elec., T/A-A
6M11G135/6	6.75	Inline 6-cylinder	144/1800	158/1800	120	135	Elec., T/A-A
6M11G160/6	6.75	Inline 6-cylinder	164/1800	180/1800	145	160	Elec., T/A-A
6M11G176/6	6.75	Inline 6-cylinder	/	200/1800	/	176	Elec., T/A-A

Product advantage

Special structure

Small size and light weight.
The intake/exhaust structure is optimized, reducing flow resistance and the height of the engine.
The special flat-bottomed oil sump is used, which reduces the height of the engine, as well as vibration and noise.
The rear-mounted air filter is used, which reduces the width of the engine and ensures easy maintenance.
Economy
Fuel consumption for the load rate between 60% and 90% is optimized specially, such that low fuel consumption is guaranteed.
Environmental adaptability
Low temperature adaptability: The engine can start directly at -10℃ without auxiliary measures and smoothly at -30℃ by means of intake preheating..
Plateau adaptability: The engine can output rated power when the altitude is less than 2,000m, and work reliably when the altitude is greater than 2,000m.
High level of platform
The engine is modular in design with high level of platform, the maintenance parts of the whole series are universal.
