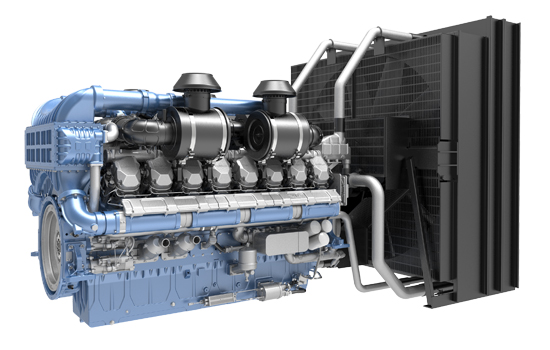

16M33 series land generating engine

Product portfolio

Model	Prime Power/Speed （kW/rpm）	Displacement (L)	Emission Standards	Number of valves	Speed Regulation Mode	Engine Type
16M33G0D3/5	1390/1500	52.3	China non-road Stage Ⅲ	4	ECU	V-type 16-cylinder, four-stroke engine
16M33G4D3/5	1530/1500	52.3	China non-road Stage Ⅲ	4	ECU	V-type 16-cylinder, four-stroke engine
16M33G6D3/5	1680/1500	52.3	China non-road Stage Ⅲ	4	ECU	V-type 16-cylinder, four-stroke engine
16M33G8D3/5	1800/1500	52.3	China non-road Stage Ⅲ	4	ECU	V-type 16-cylinder, four-stroke engine

Product advantage

Emissions

Meet the non-road emissions in three stages.

High reliability

The cylinder body adopts cast iron and grid structure, the cylinder body has high strength; The crankshaft is made of high strength alloy steel. Design life 32000h.

High economy of use

Standard large flow fuel filter, centrifugal rotor oil filter, ensure high filtration accuracy, provide cleaner fuel and oil, filter element replacement cycle up to 500 hours; Reduce cost of use.

High maintenance convenience

Observation Windows are arranged on both sides of the body for convenient replacement of connecting rod and connecting rod tile.
