Weichai Group

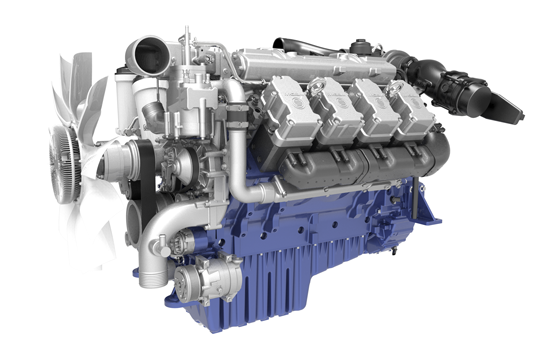

WP17 series engine for construction machinery

Product portfolio

Model	Displacement (L)	Number of valves per cylinde	Rated power/speed (kW/rpm)	Maximum torque/speed (N.m/rpm)	Technical route	Application
WP17G550E302	16.72	4	404/2100	2550/1200-1500	CR	wide-body dump trucks
WP17G600E302	16.72	4	441/2100	2800/1200-1500	CR	wide-body dump trucks
WP17G650E302	16.72	4	478/2100	3000/1200-1500	CR	wide-body dump trucks
WP17G700E302	16.72	4	515/2100	3000/1200-1600	CR	wide-body dump trucks
WP17G770E302	16.72	4	566/2100	3000/1200-1500	CR	70T wide body dump truck, milling machine, pavement machinery

Product advantages

The WP17 diesel engine is manufactured on the same platform with the Weichai Landking series diesel engine. As a large displacement diesel engine designed independently and domestically, it follows the WP12/13 family design concept, which guarantees the universality of spare parts reserve and the convenience of maintenance.

For the WP17 diesel engine, the rated power may be as high as 566kW/2,100rpm, and the maximum torque may be as high as 3,000N.m/(1,200~1,500)rpm.

Reliable

High reliability design guarantees the service life of 30,000h.

Powerful

Torque per liter is 180N•m/L.

High output torque at low speed.
