Weichai Group

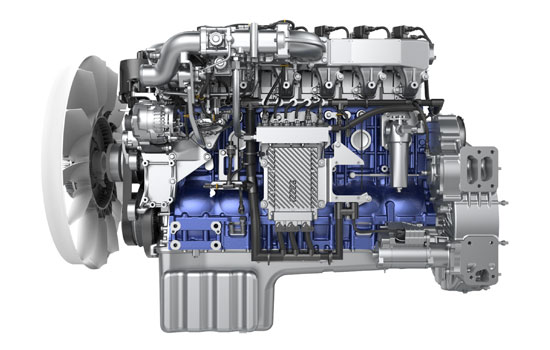

WP13NG series bus engine

Product parameters

Mode Displacement
（L） Number of valves per cylinder Rated power/speed
(kW/rpm) Maximum torque/speed
(N·m/rpm) Min. fuel consumption on external characteristic curve
(g/kW·h) Technical route Application

WP13NG430E53 12.54 4 316/1900 2200/1100-1300 ≤183 Single point injection + TWC 18m BRT 12m
luxury coach

WP13NG460E53 12.54 4 338/1900 2300/1100-1300 ≤183 Single point injection + TWC 18m BRT 12m
luxury coach

WP13NG480E53 12.54 4 353/1900 2300/800-1300 ≤183 Single point injection + TWC 18m BRT 12m
luxury coach

Product advantages

Emission standard

Euro V.

Power performance

The four-valve structure effectively significantly improves output torque at low speed and maximum torque, as well as responsiveness during acceleration and start-up.

Economy

The rated speed is reduced to 2300rpm, the absolute fuel consumption in bench test is reduced by 3%, ensuring a wider economic speed range; the fuel economic zone shifts to the low speed range; squish effect is strengthened and combustion speed is increased; the intelligent ignition coil increases ignition energy, reduces load cycle variation of low-speed part, and reduces fuel consumption.

Reliability

The new-type ECU has a good resistance against heat, vibration and electromagnetic in

Mode	Displacement （L）	Number of valves per cylinder	Rated power/speed (kW/rpm)	Maximum torque/speed (N·m/rpm)	Min. fuel consumption on external characteristic curve (g/kW·h)	Technical route	Application
WP13NG430E53	12.54	4	316/1900	2200/1100-1300	≤183	Single point injection + TWC	18m BRT 12m luxury coach
WP13NG460E53	12.54	4	338/1900	2300/1100-1300	≤183	Single point injection + TWC	18m BRT 12m luxury coach
WP13NG480E53	12.54	4	353/1900	2300/800-1300	≤183	Single point injection + TWC	18m BRT 12m luxury coach
